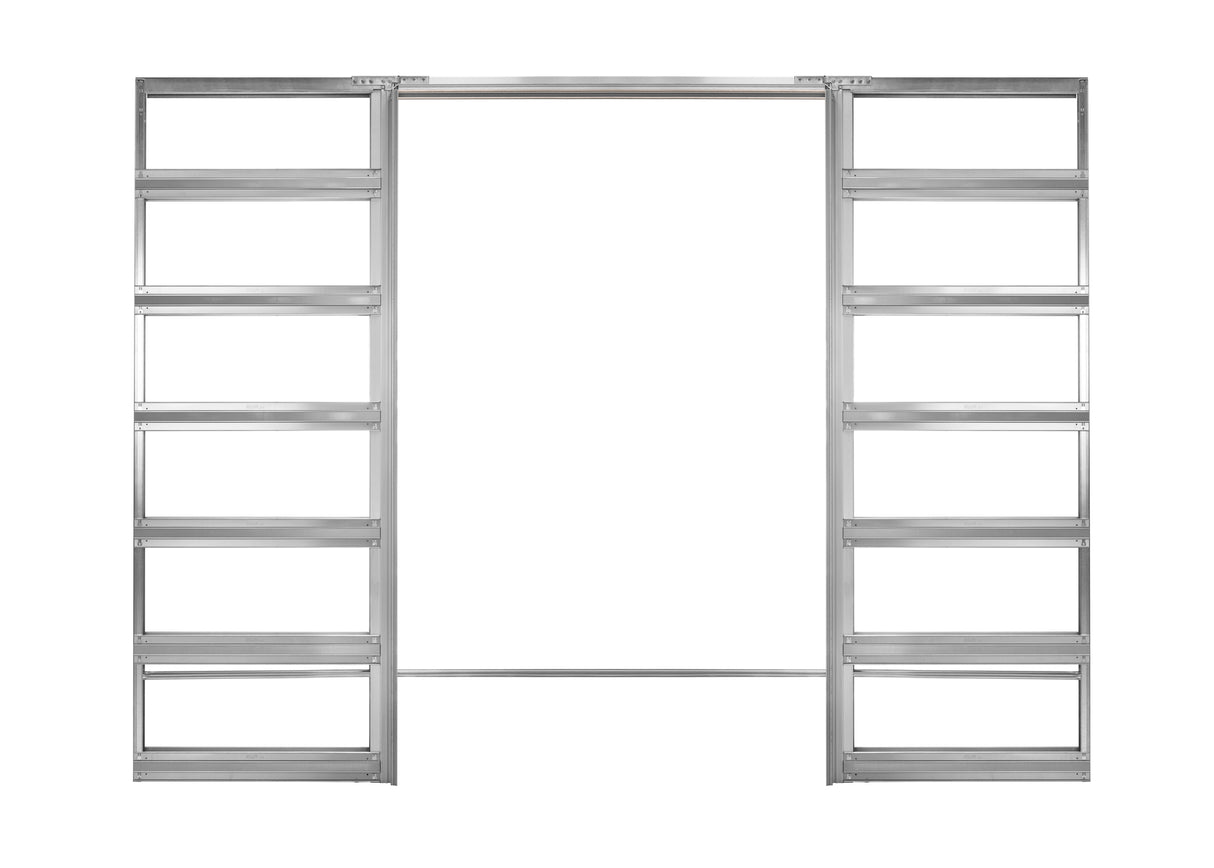

Syntesis Double Pocket Kit

• Metal Frame
• Anti wrap profile
• Top Beam with Track
• Door Mounting Kit
• All required screws

Doors and plasterboard are NOT supplied.

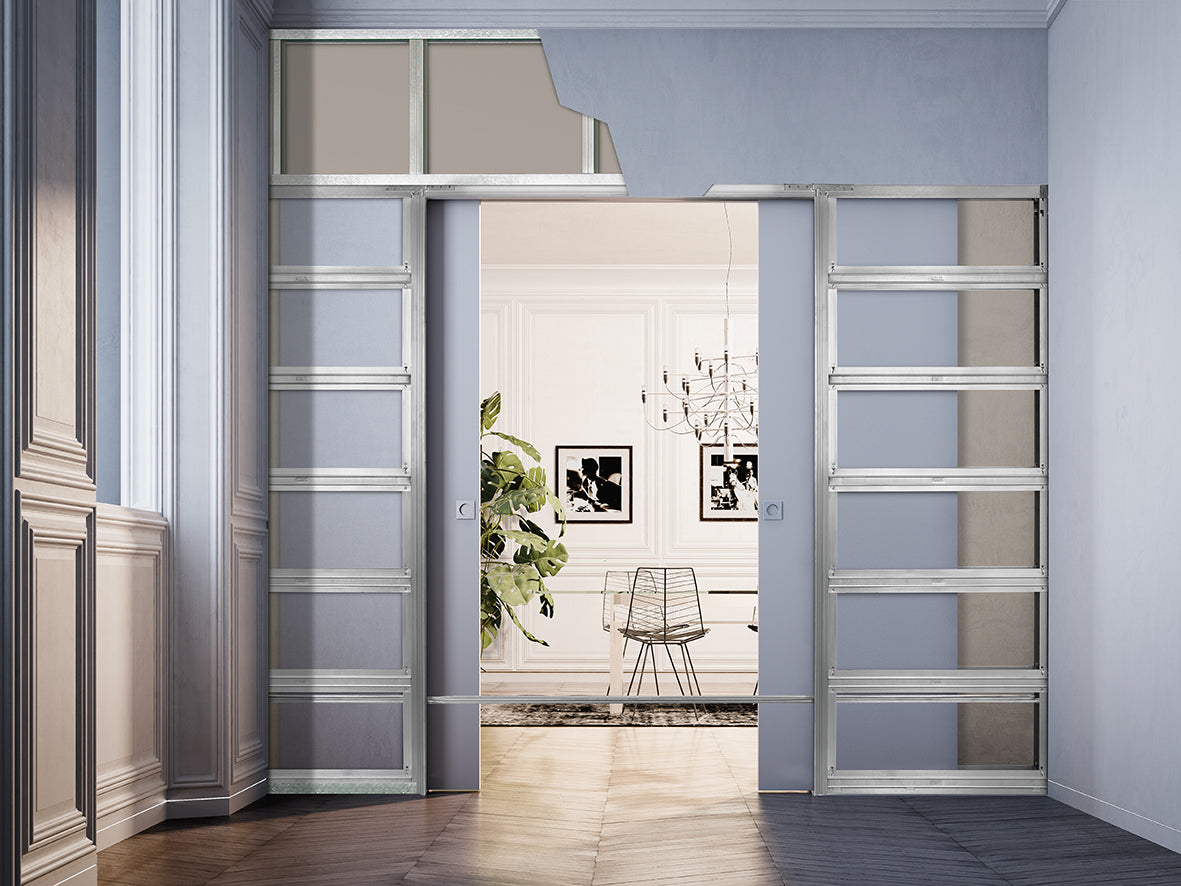

The Eclisse pocket door system can be used in new build, solid or stud walls, just by including the overall dimension in the wall design. In existing buildings with stud walls it is a relatively simple job to remove the required amount of the stud-wall to be able to incorporate the frame.

Eclisse have spent a great amount of research and development to have the simple and easiest product to assemble and install. Assembly of the pocket takes a matter of minutes using horizontals that click together
and installation is by simply screwing through the top and end verticals into the wall.

Please note, all measurements are based on the
final finished floor level (final finished floor level includes for final floor covering i.e. tiles)

Order of Work

1. Frame assembly
2. Frame installation
3. Door installation

You can plasterboard at any time after frame assembl

Data Sheet

The pocket has a “screwless” assembly process and can be assembled in a matter of minutes – simply, easily without the risk of mistakes.

The complete frame is then screwed into the existing structure through the end verticals and special positions along the top track holder.

In Syntesis Model the only finished wall thickness available is 100mm.

This U shaped profile fits into the bottom of the door and ensures the sliding action remains smooth over time even if the door should warp. THIS ITEM IS FREE OR CHARGE WITH THIS KIT.

This is an ingenious addition to the Eclisse system which is now supplied as standard with every single and double system.

 The aluminium profile is inserted into a routed channel in the underside of your door . This means that should the door warp (as many do) at any stage in the future the smooth sliding system would not be affected. This is very
important for long term customer satisfaction. The floor surface is not affected in any way and you can still have a continual floor surface between the rooms.

Please note door panel is not supplied with this kit.  You are not restricted to a specific door design, the system is design to suit any door panel of your choice providing is not thicker than 40mm and the weight of the door is not more than 80kg.  It is very important to make sure that your door rail can accept 20 mm deep routing for door brackets. Please double check with door manufacturer.

6-8 weeks confirmed at time of order
