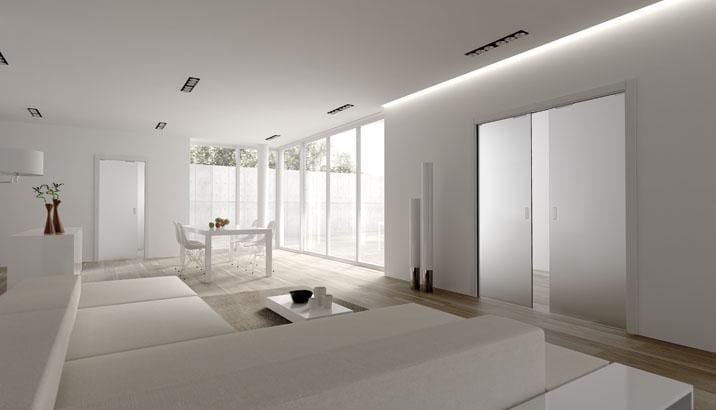

Glass Pocket Kit with 8mm Glass Panel

€0.00
Price displayed includes VAT

Throw a whole new light on your en-suite, kitchen, utility, storage…in fact, wherever you want!  The Eclisse sliding door system gives you extra space and the frameless glass door creates a lighter, roomier feel to any area.
These quality doors are made by Karis, a highly respected glass maker near Venice in Italy, in tempered safety glass that fully complies with the European norms UNI7142 and UNI7697.

The door has a smooth, easy-clean satin opaque finish and is European made and tempered to the latest European specs. The handle is a handmade satin glass oblong which is UV welded to the door.

The frame size is either 762 x 1981 or 826 x 2040 mm   and we use our own European made glass door brackets which are tested to three times the door weight!

For more information and all available sizes, please click below. Please note, Glass Panel is supplied with this kit. It is highly recommended to read the following information carefully. Please do not hesitate to contact us for further queries.



Contact us for price

What's Included
  • Metal Frame
  • Metal Door Post
  • Top Beam with Track
  • Door Mounting Kit
  • All required screws
  • Supplied with full jamb kit including pocket entrance and top horizontal jambs and dust brushes.
  • 8mm Glass Panel in Satin Finish

Your package will include – full Eclisse system complete with glass door and full timber jamb set for a fantastic finish, this includes the door post with integral bumper and a full set of dust brushes.

Plasterboard and final architrave NOT supplied.

Installation

The Eclisse pocket door system can be used in new build, solid or stud walls, just by including the overall dimension in the wall design. In existing buildings with stud walls it is a relatively simple job to remove the required amount of the stud-wall to be able to incorporate the frame.

Eclisse have spent a great amount of research and development to have the simple and easiest product to assemble and install. Assembly of the pocket takes a matter of minutes using horizontals that click together and installation is by simply screwing through the top and end verticals into the wall.

 Please note, all measurements are based on the final finished floor level (final finished floor level includes for final floor covering i.e. tiles)

Order of Work

  1. Frame assembly
  2. Frame installation
  3. Door installation
  4. Jambs and door post installation

You can plasterboard at any time after frame assembly but before installing the jambs.

PDF Downloads

Single PDF

Double PDF

Assembly Made Easy

The pocket has a “screwless” assembly process and can be assembled in a matter of minutes – simply, easily without the risk of mistakes.

The complete frame is then screwed into the existing structure through the end verticals and special positions along the top track holder.

Finished Wall Thickness

The frame work can be assembled to suit a 100mm finished wall thickness (75mm studwork) or 125mm finished wall thickness (100mm studwork) … HOWEVER… the supplied jamb kit is specific to either 100mm or 125mm BUT NOT BOTH! So you must establish if your
jamb kit is for 100mm or 125mm and assemble the frame accordingly (see sticker on jamb box or delivery document).

Delivery

Please allow up to 2 working weeks delivery time
