Double Door Co-ordination

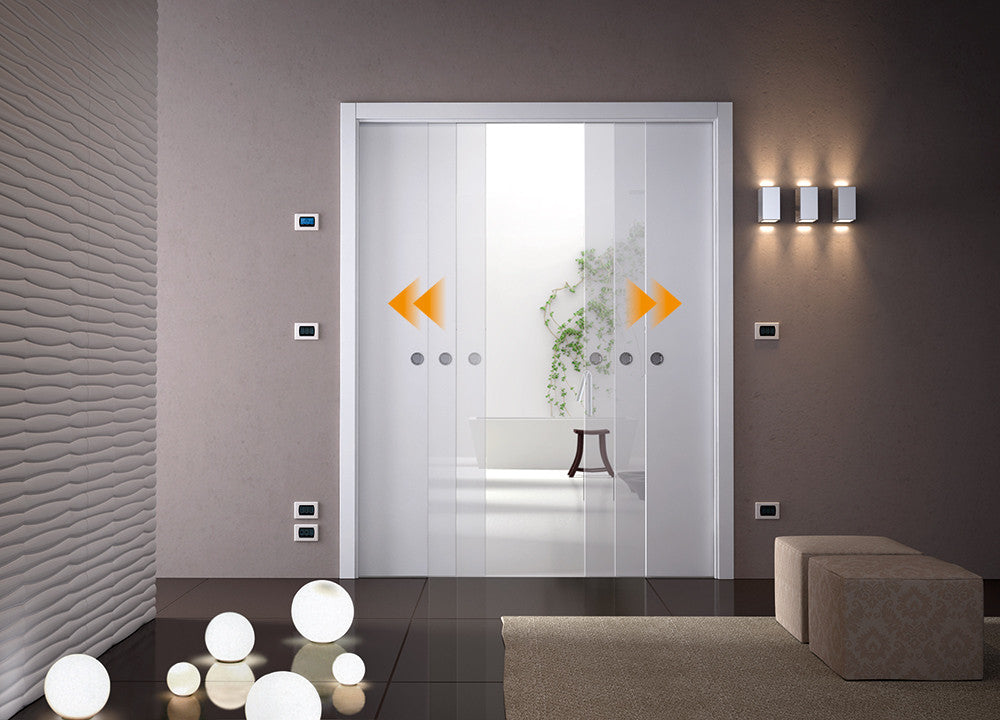

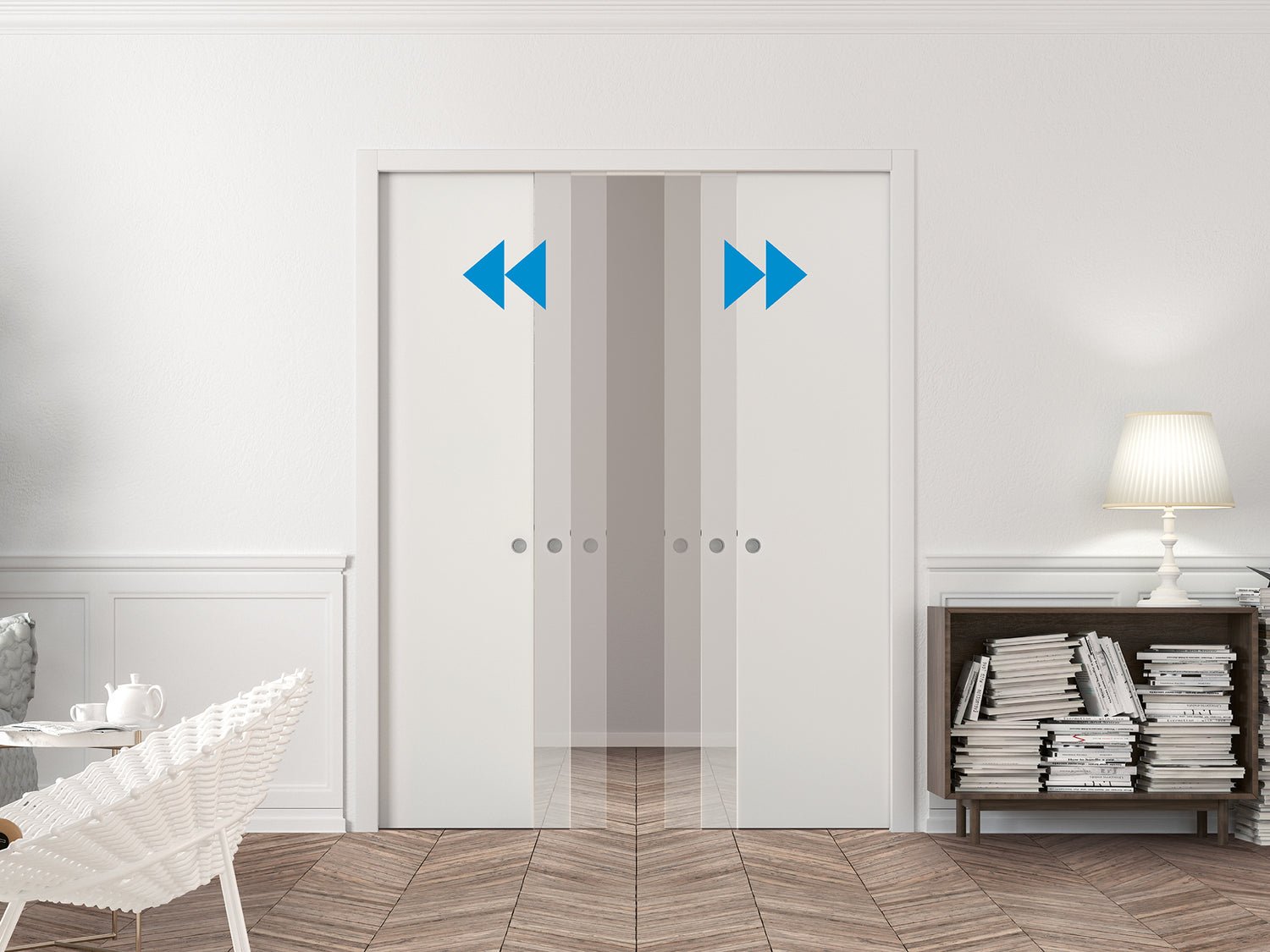

• Linked doors: Synchronises two doors to open/close together.
• Smooth motion: Keeps movement aligned and balanced.
• For: Classic DOUBLE systems.

The system can be retrofitted because the Eclisse system has a patented extractable track which can be removed so that you can install the coordination kit and is for use with wooden doors only.

• Can be retrofitted because of the Eclisse extractable track.
• Suitable for use with the Classic Double Pocket Door System and the Classic Double Pocket Door System - Wiring Ready.
• Not suitable for use with the Syntesis® Flush Double Pocket Door System.
• Not suitable for large Bespoke Classic System

• Note: A double door co-ordination kit comes with one BIAS Soft-Close with Anti-Slam. This will slow down and close them if the doors are no more than 20Kg each. Heavier doors will just be slowed down. If your doors are over 20Kg each then you can purchase an additional BIAS Soft-Close with Anti-Slam.

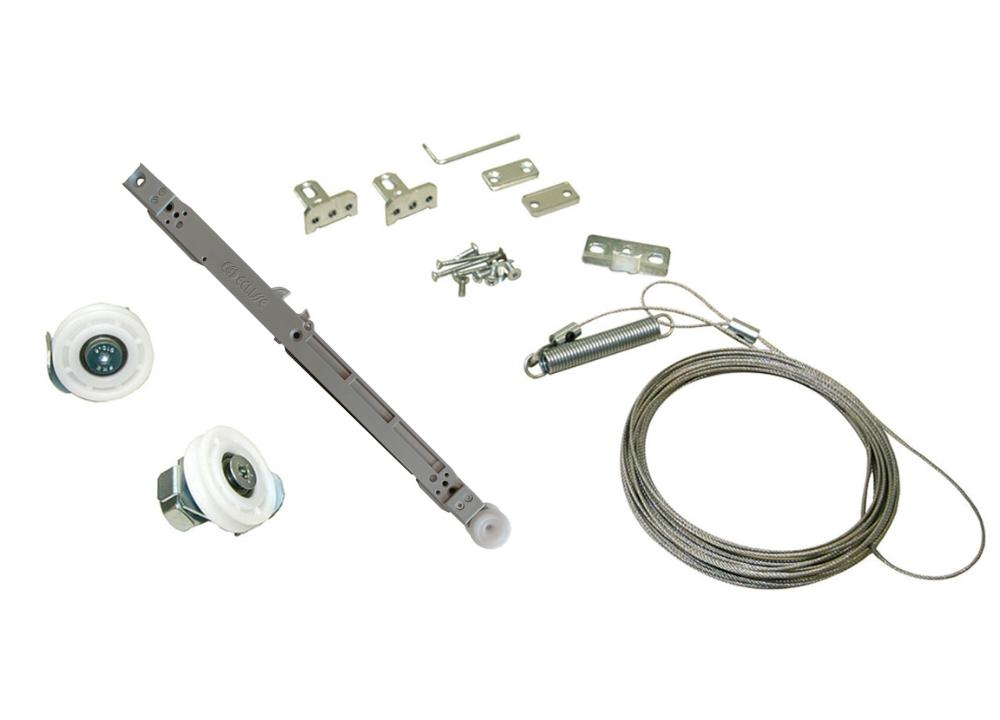

• The cable used in the co-ordination system has been specially developed by Eclisse for its strength and resistance to stretch.
• It's a 132 strand, 2mm stainless cable complete with a zinc plated 1.5mm spring. The cable is attached to the door by means of a bracket installed centrally on top of the door.
• INSTALLATION INSTRUCTIONS: Download
