Classic DOUBLE FIRE-RATED Pocket Door System (Rev G)

The independently fire-tested and certified ECLISSE Pocket Door System - Fire-Rated Double (FD30). Finished wall thickness of 120mm.

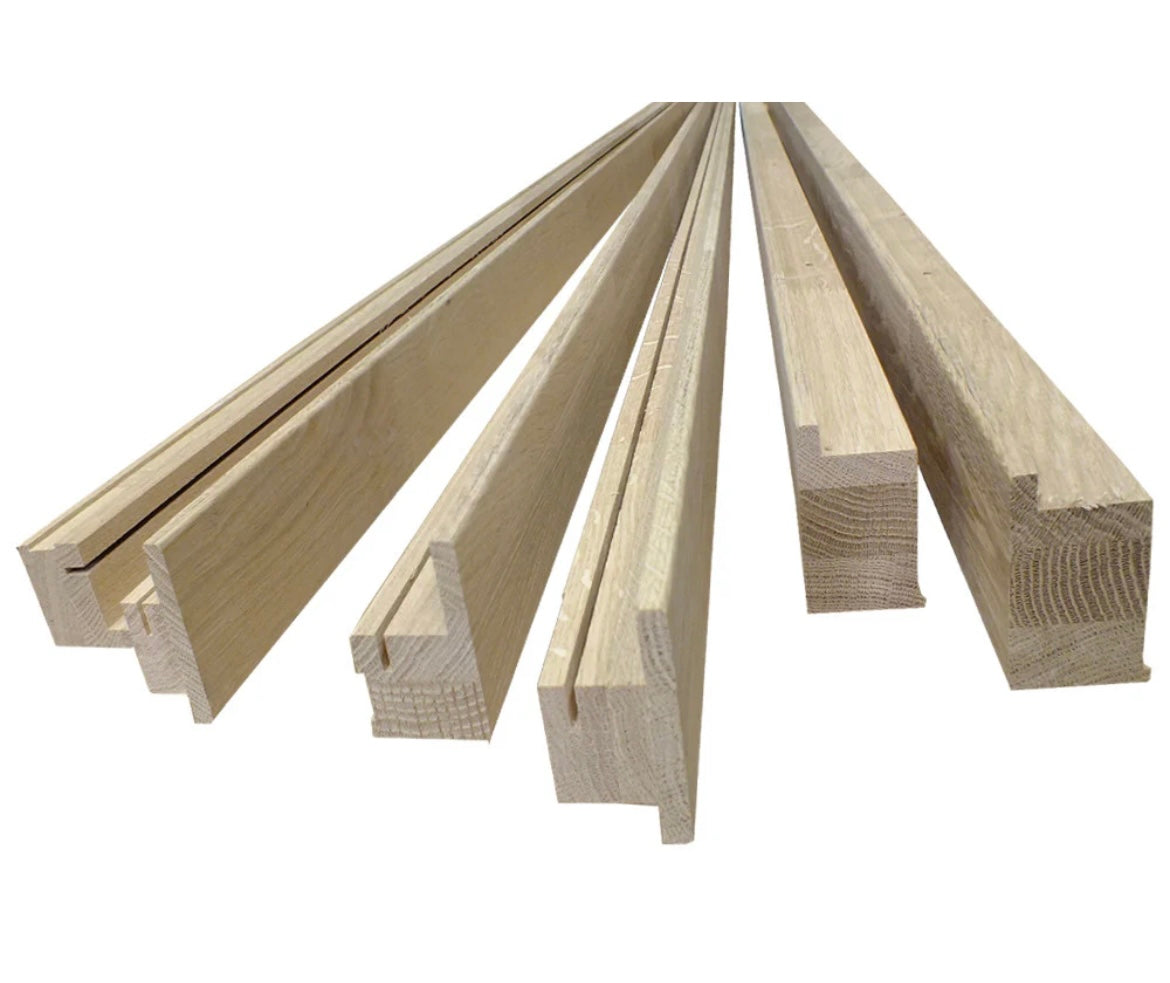

This sliding pocket door system includes all the benefits of the standard Eclisse Classic Pocket Door System plus a specially designed jamb/architrave kit made from a high-density slow burning hardwood.

Please see Field of Application Report PAR /10057/01 Revision G  updated February 2026

Certified for use with the following 44mm FD30 door panels (not supplied) Approved Door Range.

Compatible and certified for use with the BIAS Soft-Close Anti-Slam (2 required) and Self Close. (2 required)

This system comes supplied with all the necessary intumescent strips required for installation.

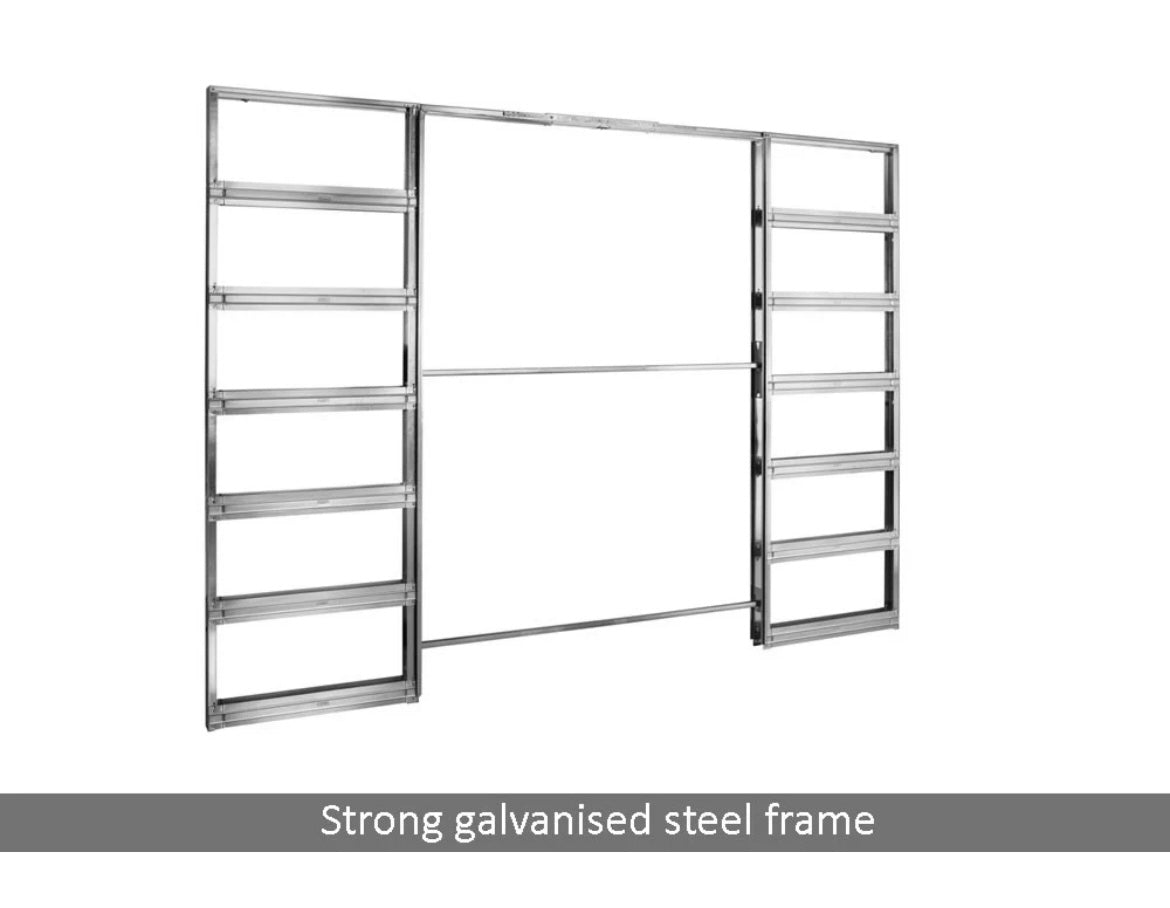

Note: The frame is 70mm and requires two layers of 12.5mm Type G plasterboard either side to give a finished wall thickness of 120mm.

Refer to the report for information on which non-essential hardware (i.e. push plates, kick plates, surface mounted pull handles, handles) which are approved for use.

For more information and all available sizes and price call us on 091 734043
