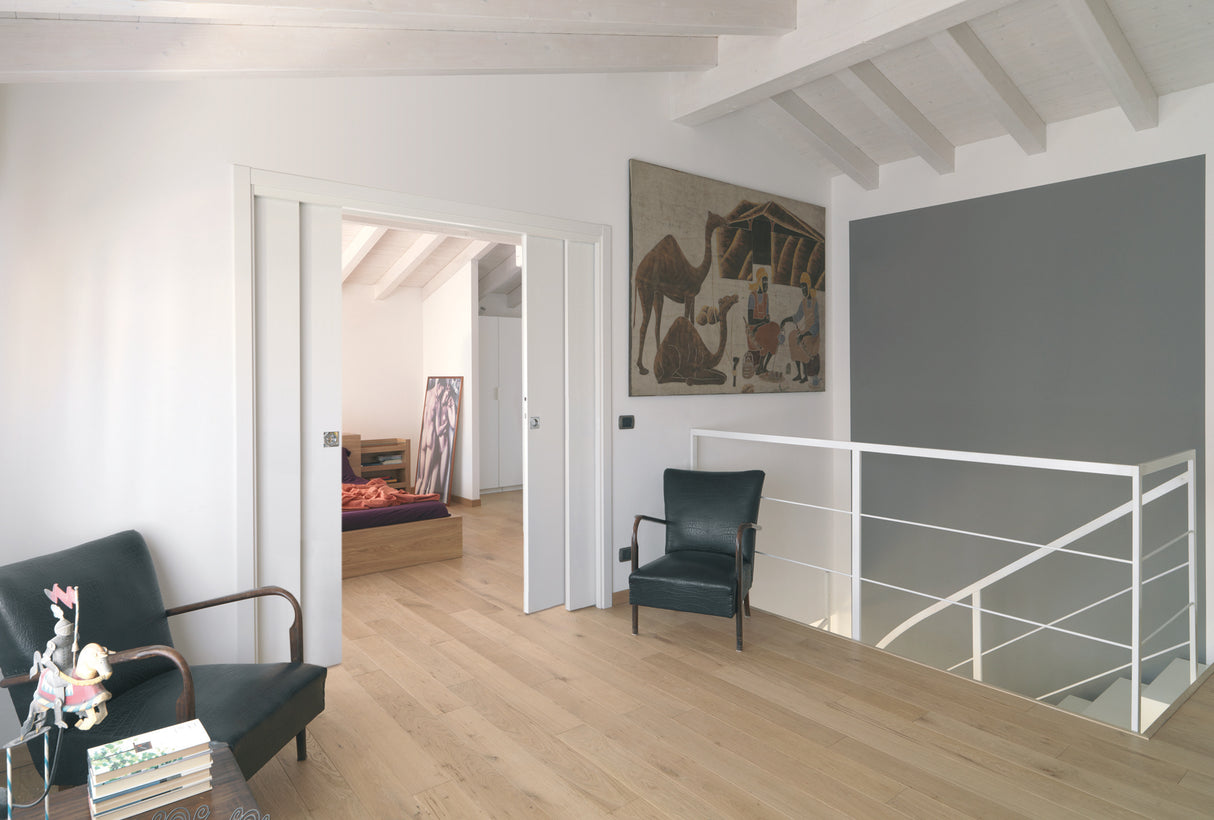

Telescopic Double Pocket Kit

• Metal Door Post
• Top Beam with Track
• Door Mounting Kit
• All required screws
• Supplied with full jamb kit including pocket entrance and top horizontal jambs and dust brushes.

Doors, plasterboard and final architrave NOT supplied.

The Eclisse pocket door system can be used in new build, solid or stud walls, just by including the overall dimension in the wall design. In existing buildings with stud walls it is a relatively simple job to remove the required amount of the stud-wall to be able to incorporate the frame.

Eclisse have spent a great amount of research and development to have the simple and easiest product to assemble and install. Assembly of the pocket takes a matter of minutes using horizontals that click together and installation is by simply screwing through the top and end verticals into the wall.

Please note, all measurements are based on the final finished floor level (final finished floor level includes for final floor covering i.e. tiles)

Order of Work

1. Frame assembly
2. Frame installation
3. Door installation
4. Jambs and door post installation

You can plasterboard at any time after frame assembly but before installing the jambs.

Data Sheet

The pocket has a “screwless” assembly process and can be assembled in a matter of minutes – simply, easily without the risk of mistakes.

The complete frame is then screwed into
the existing structure through the end verticals and special positions along the top track holder.

For Telescopic Model the only Finished wall thickness available is 180mm.

Please note door panel is not supplied with this kit.  You are not restricted to a specific door design, the system is design to suit any door panel of your choice providing is not thicker than 44mm and the weight of the door is not more than 80kg.  Please note, if using telescopic co-ordination mechanisms the door panel weight should be not more than 40kg.

Please be aware, with telescopic system you will always have 9cm of the door panel sticking out of the pocket.
This will decrease you maximum passage size by 18cm. Please make sure to allow for this.

Please allow up to 12 working weeks delivery time.
