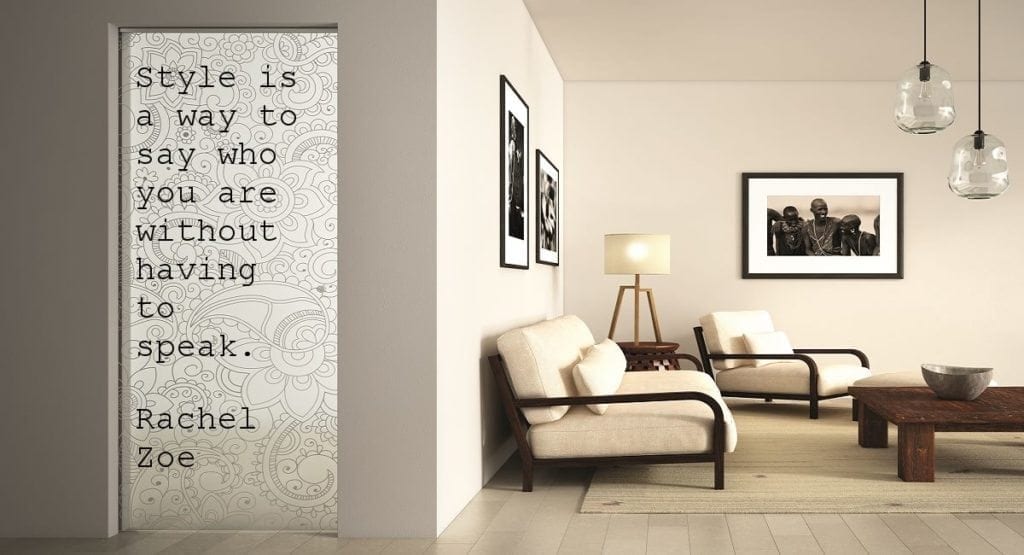

• 12747874_364515607005450_2153250273117137725_o
  • 1273653_369275209862823_5057665024057030762_o
  • 10440894_369276086529402_7821581659153693626_n
  • 12832340_369275869862757_2081579658282956106_n
  • riflessi_reference-1

Glass Pocket Kit with 10mm Glass Panel

Category: Tag:

Throw a whole new light on your en-suite, kitchen, utility, storage…in fact, wherever you want!  The Eclisse sliding door system gives you extra space and the frameless glass door creates a lighter, roomier feel to any area.
These quality doors are made by Karis, a highly respected glass maker near Venice in Italy, in tempered safety glass that fully complies with the European norms UNI7142 and UNI7697.

Beautifully crafted by  Karis near Venice in Italy, these doors come in a wide range of designs and motifs, from simple opaque’s to create privacy and enhance light, to stunning doors hand painted Italian artists.

For more information and all available sizes, please click below. Please note, Glass Panel is supplied with this kit. It is highly recommended to read the following information carefully. Please do not hesitate to contact us for further queries.

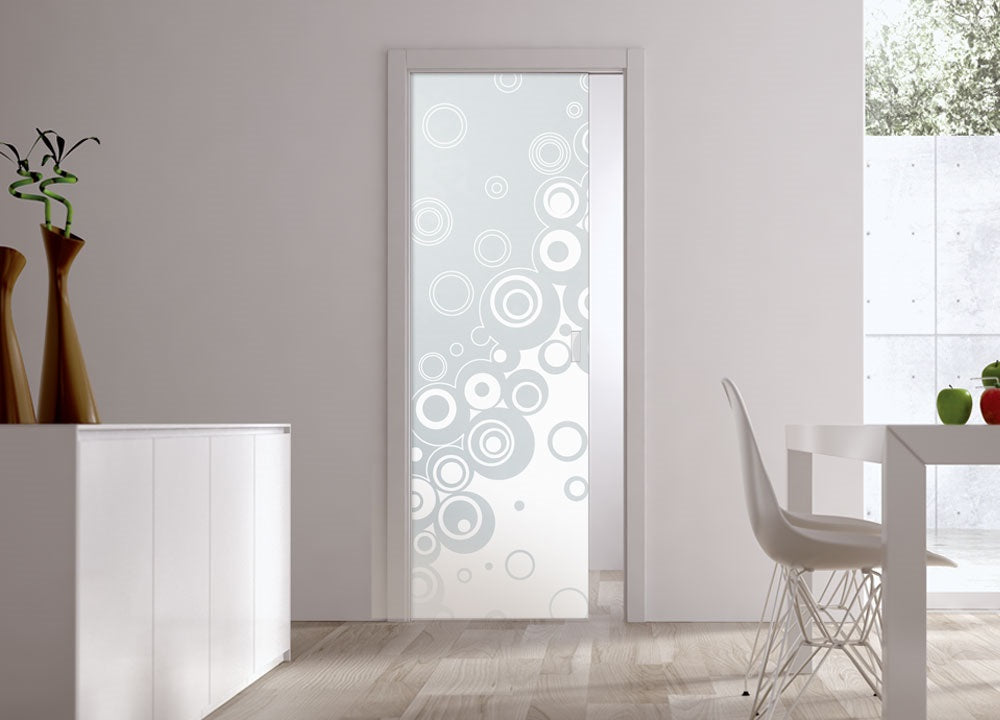

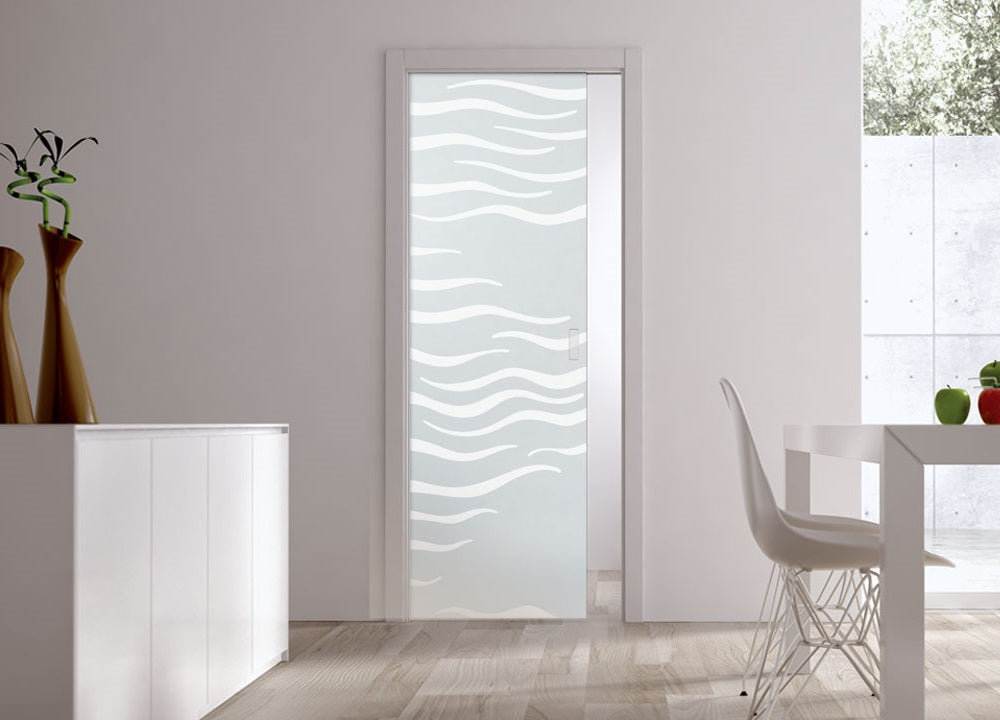

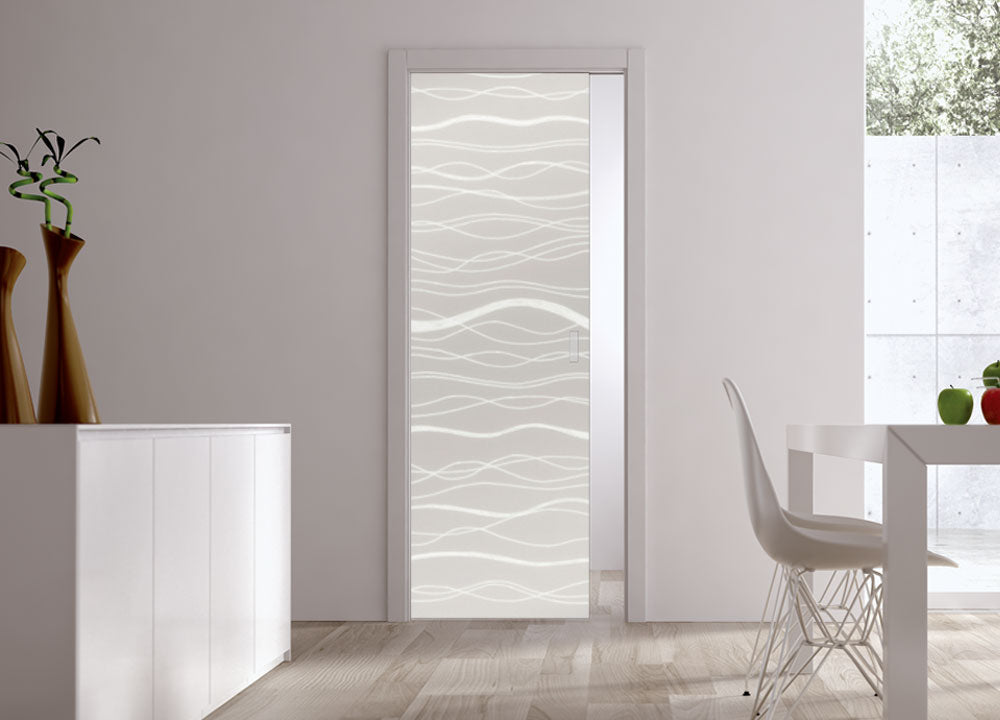

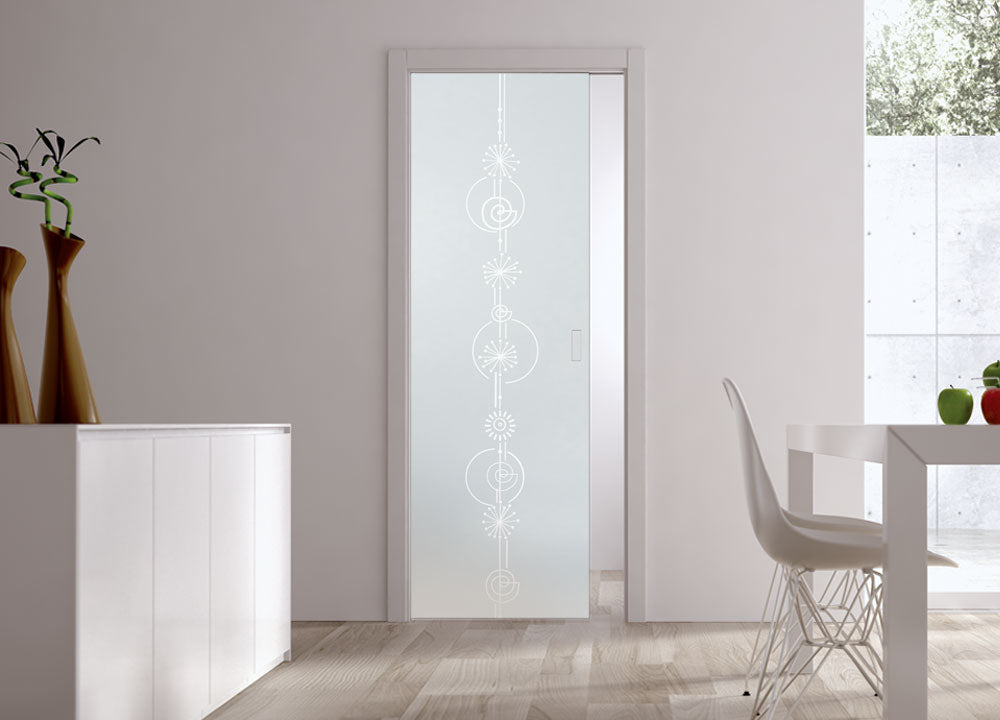

Satin 10mm Glass with Sandblasted Patterns

Satin 10mm Glass With Sandblasted Patterns

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS


Murano Coloured Inserts 10mm Glass

Beautiful Murano Coloured Inserts, 10mm Glass

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS


Hand Painted By Artists In Italy 10mm Glass

Hand Painted By Artists In Italy, 10mm Glass

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

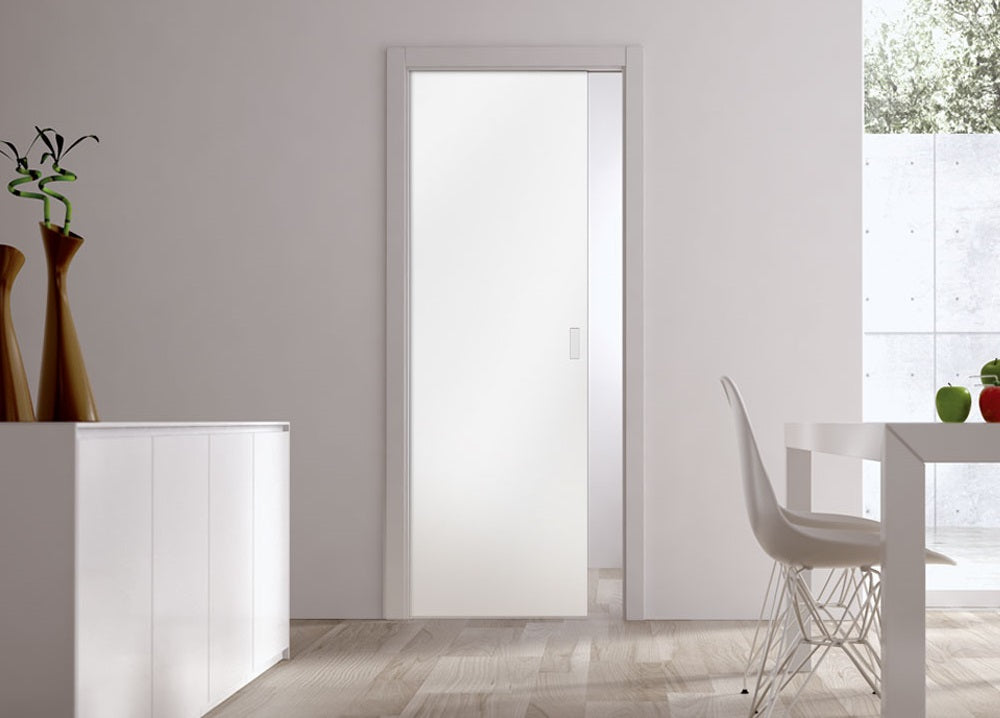

Solid and Satin Colours 10mm Glass

Solid & Satin Colours, 10mm Glass

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS

SATIN 10MM GLASS WITH SANDBLASTED PATTERNS


What is Included?

What is Included in the Kit?

  • Metal Frame
  • Metal Door Post
  • Top Beam with Track
  • Door Mounting Kit
  • All required screws
  • Supplied with full jamb kit including pocket entrance and top horizontal jambs and dust brushes.
  • 8mm Glass Panel in Satin Finish

Your package will include – full Eclisse system complete with glass door and full timber jamb set for a fantastic finish, this includes the door post with integral bumper and a full set of dust brushes.

Plasterboard and final architrave NOT supplied.


Installation

Installation

The Eclisse pocket door system can be used in new build, solid or stud walls, just by including the overall dimension in the wall design. In existing buildings with stud walls it is a relatively simple job to remove the required amount of the stud-wall to be able to incorporate the frame.

Eclisse have spent a great amount of research and development to have the simple and easiest product to assemble and install. Assembly of the pocket takes a matter of minutes using horizontals that click together and installation is by simply screwing through the top and end verticals into the wall.  Please note, all measurements are based on the final finished floor level (final finished floor level includes for final floor covering i.e. tiles)

Order of Work

  1. Frame assembly
  2. Frame installation
  3. Door installation
  4. Jambs and door post installation

You can plasterboard at any time after frame assembly but before installing the jambs.


Assembly Made Easy

Assembly Made Easy

The pocket has a “screwless” assembly process and can be assembled in a matter of minutes – simply, easily without the risk of mistakes.

The complete frame is then screwed into the existing structure through the end verticals and special positions along the top track holder.


Finished Wall Thickness

Finished Wall Thickness

The frame work can be assembled to suit a 100mm finished wall thickness (75mm studwork) or 125mm finished wall thickness (100mm studwork) … HOWEVER… the supplied jamb kit is specific to either 100mm or 125mm BUT NOT BOTH! So you must establish if your jamb kit is for 100mm or 125mm and assemble the frame accordingly (see sticker on jamb box or delivery document).


Delivery

Delivery

Due to the bespoke nature of this package, the lead times are: up to 2 weeks on frames and

5/6 weeks on the glass doors (Frames can be delivered first).


Return policy on Special Orders

Return Policy on Special Orders

Please note, all glass kits are not an off the shelve items and require special order. If you change your mind about a product you are not entitled to either return or refund.


Price Enquiry

Price Enquiry

For a quotation, please contact us with reference to glass panel title. Please note the carriage charge will also apply.


What Is Satin Glass?

Karis Glass Doors

What is Satin Glass ?

Satin Glass is simply acid etched glass which is polished for an easy – clean finish.

As you can see from the photos below, the further away from the glass the more opaque it becomes.

Ideal for en-suites , utilities and most glass door situations except family bathrooms where we would recommend sand blasting both sides of the glass for complete privacy.

10inch30cm1cm




Choosing The Right Size

Data Sheet PDF

Please refer to the data sheet for all the sizes available.
